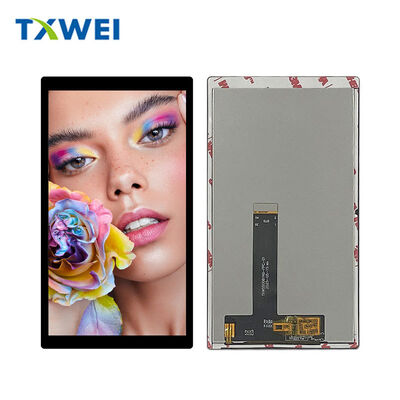

5.5-inch LCD gaming handheld screen 1080*1920 high brightness 700nits motorcycle navigation display screen

MOQ: 1
価格: 交渉可能
配達期間: 4～6時間
支払方法: L/C、D/A、D/P、T/T
供給能力: 10000個
詳細情報
製品説明
詳細情報
起源の場所
深セン
ブランド名
TXWEI
証明
CE FCC ROHS
モデル番号
txw550081n0-sy
ドキュメント
TXW550081N0-CTP_SPEC.pdf
ピクセル数:
1080*1920
見る方向:
IPS
インターフェイスを表示します:
MIPI 4 レーン
輝度:
700匹のnit
アクティブエリア:
68.53*121.82（mm）
外形サイズ:
70.53*127.28*1.68/75.92*136.3*2.56（mm）
動作温度:
-20+60℃
保管温度:
-30+70°C
ピン数:
40PIN
ハイライト:

5.5-inch LCD gaming handheld screen

,

1080x1920 high brightness motorcycle display

,

700nits TFT LCD navigation screen

製品説明

TXW550081N0-CTP

5.5" FHD IPS TFT LCD Display Module with Capacitive Touch

Product Overview

The TXW550081N0-CTP is a premium 5.5-inch TFT LCD display module manufactured by Shenzhen Tianxianwei Technology Co., Ltd. Designed for high-performance applications, this module combines stunning Full HD resolution with responsive capacitive touch technology in a compact, industrial-grade package.
Whether you're developing handheld devices, industrial controllers, medical equipment, or consumer electronics, this display delivers exceptional clarity, color accuracy, and reliable touch performance.

Key Specifications

Display Size: 5.5 inches (Diagonal)
Resolution: 1080 × RGB × 1920 (FHD)
Display Type: IPS TFT LCD (Normally Black)
Active Area: 68.53(W) × 121.82(H) mm
Pixel Pitch: 0.06345 × 0.06345 mm
Color Depth: 16.7 Million Colors (24-bit RGB)
Viewing Direction: Full IPS (All Directions)
Driver IC: HX83112-A
Interface: 4-Lane MIPI DSI
Touch Technology: Capacitive Touch Panel (CTP)
Module Dimensions: 75.92(W) × 136.30(H) × 2.56(T) mm

Superior Visual Performance

IPS Technology for Perfect Viewing Angles

Unlike standard TN panels, our In-Plane Switching (IPS) technology ensures consistent color reproduction and contrast from every viewing angle. Whether viewed from the side, above, or below, your content remains vibrant and accurate.

Full HD Resolution

With 1080 × 1920 pixels packed into a 5.5" screen, achieve ~400 PPI pixel density for razor-sharp text, crisp icons, and detailed imagery. Perfect for applications requiring fine visual precision.

16.7M Color Depth

Support for 24-bit RGB color enables smooth gradients, natural skin tones, and professional-grade color accuracy for multimedia applications.

Physical Dimensions

LCM + CTP Module Size: 75.92 mm (W) × 136.30 mm (H) × 2.56 mm (T)
Active Display Area: 68.53 mm (W) × 121.82 mm (H)
Compact Design: Optimized for space-constrained devices without compromising screen real estate.

Interface & Connectivity

4-Lane MIPI DSI Interface

High-speed MIPI DSI (Display Serial Interface) with 4 data lanes ensures:
  • High bandwidth for smooth 60Hz+ refresh rates
  • Low EMI for noise-sensitive applications
  • Reduced pin count simplifying PCB design
  • Low power consumption extending battery life

40-Pin FPC Connector Pinout

Power & Ground:
  • Pins 1-2: GND
  • Pins 15, 17: LED+ (Anode)
  • Pins 21, 23, 25: LED- (Cathode)
  • Pin 31: LCD_IOVCC (1.8V)
  • Pin 35: VSP (+5.7V)
  • Pin 37: VSN (-5.7V)
  • Pins 39-40: GND
MIPI DSI Data:
  • Pins 12/14: D0N/D0P (Data Lane 0)
  • Pins 18/20: D1N/D1P (Data Lane 1)
  • Pins 30/32: D2N/D2P (Data Lane 2)
  • Pins 36/38: D3N/D3P (Data Lane 3)
  • Pins 24/26: CLKN/CLKP (Clock)
Control Signals:
  • Pin 3: CTP_RST (Touch Reset)
  • Pin 4: LCD_RST (LCD Reset, 1.8V, Active Low)
  • Pin 5: CTP_INT (Touch Interrupt)
  • Pin 6: TE (Tearing Effect)
  • Pin 29: PWM (Backlight Control)
Touch I2C Interface:
  • Pin 7: CTP_SDA (Touch I2C Data)
  • Pin 9: CTP_SCL (Touch I2C Clock)
Other:
  • Pin 8: LCD_ID (NC - No Connection)
  • Pin 11: NC (No Connection)

Advanced Backlight System

Type: Edge-lit White LED
LED Count: 18 LEDs
Forward Voltage: 16.8V ~ 19.2V (Typical: 18V)
Forward Current: 60 mA (Typical)
Luminance: 700 cd/m² (With LCD+CTP)
LED Lifetime: 30,000 Hours
Dimming Control: PWM Interface
Pro Tip: The backlight supports PWM dimming (Pin 29), enabling precise brightness control from 0-100% for power management and ambient light adaptation.

Integrated Capacitive Touch Panel

Projected Capacitive Touch (PCT) technology delivers:
  • Multi-touch support (typically 5+ points)
  • High sensitivity — responds to light finger touches
  • Durability — sealed surface resistant to contamination
  • Optical clarity — minimal impact on display brightness
Touch Interface: I²C (SDA/SCL) with dedicated interrupt line (CTP_INT) and reset control (CTP_RST).

Environmental & Reliability

Operating Conditions

Operating Temperature: -20°C ~ +60°C
Storage Temperature: -30°C ~ +70°C
Operating Humidity: 20% ~ 90% RH

Reliability Testing

✓ High Temperature Storage: +70°C / 96 hours
✓ Low Temperature Storage: -30°C / 96 hours
✓ High Temperature Operating: +60°C / 96 hours
✓ Low Temperature Operating: -20°C / 96 hours
✓ Thermal Shock: -20°C ↔ +60°C, 10 cycles
✓ Humidity Resistance: 50°C × 90% RH / 96 hours

Electrical Characteristics

I/O Supply Voltage (VDDIO):
  • Minimum: 1.8V
  • Typical: 1.8V
  • Maximum: 3.3V
Positive Analog Voltage (VSP):
  • Minimum: 4.8V
  • Typical: 5.7V
  • Maximum: 6.0V
Negative Analog Voltage (VSN):
  • Minimum: -6.0V
  • Typical: -5.7V
  • Maximum: -4.8V
Power Sequence Requirements:
  • VDD1 rise time: 20μs ~ 2ms
  • VSP/VSN rise time: 100μs ~ 5ms
  • Proper sequencing required for reliable startup

Ideal Applications

Consumer Electronics

  • Handheld gaming devices
  • Portable media players
  • High-end remote controls

Industrial

  • HMI control panels
  • Test & measurement equipment
  • Industrial tablets

Medical

  • Portable diagnostic devices
  • Patient monitoring systems
  • Medical tablets

Automotive

  • Dashboard displays
  • Infotainment systems
  • Rear-seat entertainment

Ordering Information

Model Number: TXW550081N0-CTP
Description: 5.5" FHD IPS LCD + Capacitive Touch Panel
Customization Options Available:
  • Brightness enhancement (up to 1000+ nits)
  • Cover glass customization (AG/AR/AF coatings)
  • FPC length and connector modifications
  • Touch controller firmware customization
