12.3inch 720*1920 LCD screen agricultural machinery instrument navigation MIPI interface wide temperature full view car instrument display screen

製品

12.3inch 720*1920 LCD screen agricultural machinery instrument navigation MIPI interface wide temperature full view car instrument display screen

MOQ:	1
価格:	交渉可能
配達期間:	4～6時間
支払方法:	L/C、D/A、D/P、T/T
供給能力:	10000個

起源の場所

ブランド名

TXWEI

CE FCC ROHS

モデル番号

TXW123006S0-KK

ピクセル数:

720*1920

見る方向:

インターフェイスを表示します:

600匹のnit

アクティブエリア:

109.51(幅)×292.03(高さ)

外形サイズ:

134.11(幅)×316.63(高さ)×4.70(厚さ)

動作温度:

-20+70℃

保管温度:

-30+80°C

40PIN

ディスプレイIC:

ILI79600A-XA

タッチテクノロジー:

タッチインターフェース:

痛いIC:

ILI2511

ハイライト:

12.3inch MIPI LCD display

agricultural machinery instrument screen

wide temperature car display screen

製品説明

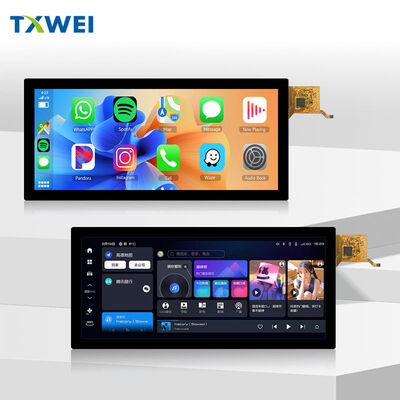

◆ TXW123006S0-KK ◆ 12.3" Ultra-Wide Automotive IPS Display Module

▸ 720×1920 Resolution ▸ 600 nits Brightness
▸ MIPI DSI Interface ▸ G+G Capacitive Touch ▸ Ultra-Slim 2.8mm Profile ▸ Wide Temperature -20°C to +70°C

━━━━━━━━━━━━━━━━━━━━━━

▼ OVERVIEW

The TXW123006S0-KK is a cutting-edge 12.3-inch ultra-wide display module engineered for next-generation automotive instrument clusters and heavy machinery control systems.

Its distinctive 9:21 vertical aspect ratio delivers an immersive canvas for digital dashboards, while the remarkable 2.8mm slim profile redefines space efficiency in vehicle interior design.

This module combines high-performance IPS display technology with premium G+G capacitive touch in a package built to withstand the harshest automotive environments.

━━━━━━━━━━━━━━━━━━━━━━

▼ KEY FEATURES

◈ Ultra-Wide Vertical Display

Expansive 12.3" viewing area with 109.51 × 292.03mm active display space. 720 × 1920 resolution delivers crisp instrument graphics and sharp navigation maps. Unique 9:21 aspect ratio optimized for modern split-screen gauge layouts. Allows simultaneous presentation of speedometer, tachometer, navigation, and multimedia information.

◈ Exceptional Slimness

LCM thickness: just 2.8mm — among the slimmest in automotive class. Full assembly with touch: 4.7mm total depth. Enables sleek, modern dashboard architectures. Provides engineers greater flexibility in interior packaging.

◈ All-Angle Visibility

IPS technology ensures consistent color and contrast at every viewing angle. 600 nits brightness guarantees clear sunlight readability. Eliminates color shift and contrast loss common in traditional panels. Critical data stays visible regardless of seating position.

◈ Rugged Touch Performance

Premium G+G (Glass-Glass) capacitive structure. ILI2511 controller supports true 10-point multi-touch. Wet-hand and glove-mode operation for real-world driving conditions. I²C interface provides simple, efficient system integration.

◈ Automotive-Grade Reliability

Operating range: -20°C to +70°C. Storage range: -30°C to +80°C. Engineered for engine bay heat and cold-weather starts. Survives unconditioned warehouses and shipping containers.

◈ Proven Interface Architecture

MIPI DSI 40-pin high-speed connection. Low-EMI characteristics essential for vehicle electronics. ILI79600A-XA driver IC with established automotive track record. Proven compatibility with major Tier-1 supplier systems.

━━━━━━━━━━━━━━━━━━━━━━

▼ TARGET APPLICATIONS

◆ Automotive Instrument Clusters Full-LCD digital dashboards. Multi-theme gauge displays. Customizable layouts with high-resolution graphics.

◆ Agricultural Machinery
Modern tractors and harvesters. GPS guidance data. Implement controls and diagnostic information. Readable even in bright field conditions.

◆ Construction Equipment Excavators, wheel loaders, heavy equipment. Real-time monitoring of hydraulic pressures, fuel levels, operational warnings. Vibration-resistant packaging.

◆ Smart Rearview Mirrors Streaming video displays. Dual-camera feed presentation. Rear view and backup camera images simultaneously.

◆ Specialty Vehicles Emergency response vehicles. Military transports. Mission-critical command center interfaces.

━━━━━━━━━━━━━━━━━━━━━━

▼ MECHANICAL SPECIFICATIONS

LCM Module — Width: 119.86mm — Height: 301.79mm
— Thickness: 2.80mm — Active Area: 109.51 × 292.03mm

Full Assembly (LCM + Touch) — Width: 134.11mm — Height: 316.63mm — Thickness: 4.70mm

━━━━━━━━━━━━━━━━━━━━━━

▼ ELECTRICAL & ENVIRONMENTAL

Display Interface: MIPI DSI 40-pin Touch Interface: I²C Logic Voltage: 3.3V Touch Controller: ILI2511 Display Driver: ILI79600A-XA Operating Temperature: -20°C to +70°C Storage Temperature: -30°C to +80°C Brightness: 600 nits typical

━━━━━━━━━━━━━━━━━━━━━━

◈ Customization Options

High-brightness variant (1000 nits) for extreme sunlight. Extended FPC lengths for flexible integration. Custom cover lens graphics with corporate branding. Anti-reflective and anti-fingerprint optical coatings.

━━━━━━━━━━━━━━━━━━━━━━

▼ ABOUT SHENZHEN TIANXIANWEI TECHNOLOGY

Specialists in industrial and automotive display solutions. Serving global markets across agricultural machinery, commercial vehicles, industrial automation, and medical equipment. Comprehensive service from prototype evaluation through volume production. Dedicated engineering support ensuring successful display integration.
