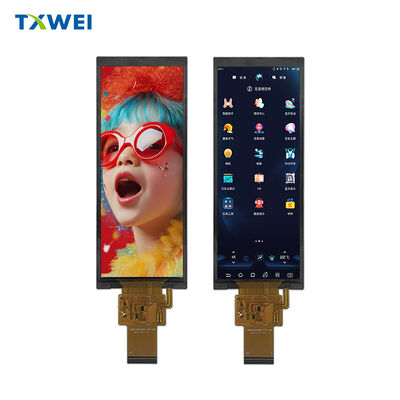

6.2inch 480*1280 two wheeled vehicle instrument strip MIPI interface display panel medical instrument LCD screen

This 6.2-inch 'long screen' may be the best answer for the instrument panel of a two wheeled vehicle
When electric vehicles are struggling with range and motors, a good screen is becoming a new battlefield for differentiation.

一,Let's first look at the hard power: what pain points does it solve?
Most car screens on the market have a brightness of only 400-600nits, making it difficult to see the speed clearly under midday sunlight. This TXW620009B0 directly pulls the brightness to 1200nits - equivalent to the peak brightness level of an iPhone outdoors.

But this is just the foundation. A truly knowledgeable hardware manager will notice this set of data:

丨480 × 1280 resolution | 6.2-inch vertical screen

Not the traditional 16:9 landscape display, but a 3:8 vertical bar ratio
Perfectly adapted to the central installation position of electric vehicles, the narrow and long form does not obstruct the riding view
Upper half navigation, middle speed, lower half battery/gear, clear information layering

丨Operating temperature: -30 ℃~+85 ℃

The first startup in the early morning of winter in the north will not cause the LCD to freeze

Southern noon sun exposure+internal heating of the device, touch will not drift (note: this is a pure display version, touch needs to be equipped externally)
The storage temperature even takes into account the extreme logistics environment of -40 ℃~90 ℃

丨MIPI 4 Lane interface

Compared to traditional RGB interfaces, it saves more than 30% of power, which is crucial for products like two wheelers that are "expensive in every inch of electricity"
40PIN thin cable, more flexible at the bend of the handlebar, stronger EMC anti-interference ability

二,Engineering wisdom hidden in parameters
How was it achieved with a thickness of only 4.38mm?
The external dimensions are 62.29 × 163.36 × 4.38mm (thickness), which belongs to the ultra-thin tier among 6-inch screens.
Traditional car screens often have a thickness of 6-8mm due to the use of G+G external touch or thick iron frame structures. This product adopts Incell integrated design (touch version TXW620009B0-CTP), integrating the touch layer into the interior of the display panel.

The significance of ID designers:
Can make a streamlined instrument cover that is closer to the handle
The stacking space of the whole machine is released by 2-3mm, leaving valuable space for the battery or motherboard
After loading, the "suspension feeling" is stronger and visually lighter
Design logic for display area 54.43 × 146.65mm
The size of this AA area (Active Area) means:
Screen to body ratio of approximately 87% (calculated as display area/external area)
There is a process edge of about 4mm around, which not only ensures that the BM area (black edge) does not overflow, but also leaves enough foam compression space for structural waterproofing
The height of 146.65mm perfectly matches the width of an adult palm, allowing the thumb to naturally touch the lower half of the screen when holding the handle with one hand

三,It's not a universal screen, but it can accurately capture three different scenarios

▶  Intelligent instrument panel for two wheeled vehicles (core scenario)
The dashboard of 48V/72V electric vehicles is being upgraded from a "battery pointer" to a "full-color intelligent screen". The 1200nits high brightness of this screen solves the problem of outdoor visibility, the vertical screen ratio solves the problem of limited handle space, and the MIPI low power consumption solves the problem of battery life anxiety.
More importantly, the price is only ¥ 53 including tax for a batch of 3K, which is 60% cheaper than imported car standard screens and not much more expensive than consumer grade screens, but its performance and reliability are car standard.

▶  Portable medical equipment
For handheld ultrasound and mobile monitors, 6.2 inches is the golden balance between "wanting to see the image clearly" and "not wanting it to be too heavy". The thickness of 4.38mm means that the whole machine can achieve within 2cm, and the 1200nits brightness allows doctors to see waveforms clearly even in outdoor emergency situations or strong ambulance light.

▶  Agricultural/construction machinery central control screen
The working environment of tractors and harvesters is high vibration, high dust, and wide temperature difference. IPS full view ensures that drivers can see clearly in different sitting positions, -30 ℃ cold start ensures normal use in winter in Northeast China, and the stability of MIPI interface far exceeds that of easily loose RGB pin.

四,Selection suggestion: with touch or pure display?
There are currently two versions of this model:
TXW620009B0: Pure display version (this document), requires external contact with the control board or physical buttons
TXW620009B0-CTP: Incell touch integrated version (total thickness 5.68mm)

If you choose the pure display version:
The project has a physical button scheme that does not require touch control

Need for extreme ultra-thin (4.38mm vs 5.68mm)
I want to customize the touch solution myself (such as a special touch IC that supports wet hands/gloves)

If you choose the touch version:
I want to create a full touch UI and pursue integrated aesthetics
I don't want to deal with the issue of fitting tolerance between touch and display screens
