| MOQ: | 1 |
| 価格: | 交渉可能 |
| 配達期間: | 7-16DAYS |
| 支払方法: | L/C、D/A、D/P、T/T |
| 供給能力: | 10000pcs |
TXW550081N0-CTP: A 5.5-inch "small steel cannon" that packs high-definition, high brightness, and high reliability in one go——A fully integrated display solution designed for in car, handheld, and outdoor terminals
——————————————————
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
1080*3RGB(H)X1920(V) |
Dots |
|
Pixel arrangement |
RGB stripe |
-- |
|
Pixel Pitch (W*H) |
0.06345(W) × 0.06345 (H) |
mm |
|
Active area |
68.53(W) × 121.82(H) |
mm |
|
Viewing direction |
IPS Type LCD |
-- |
|
TFT Driver IC |
HX83112-A |
-- |
|
TFT interface |
4lane MIPI interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
70.53(W) ×127.28(H) ×1.68(T) |
mm |
|
LCM+CTP Size(W*H*T) |
75.92(W) ×136.30(H) ×2.56(T) |
mm |
High definition visual experience
• FHD 1080P: With a pixel density of up to 400 PPI, the image is delicate and the text icons have no jagged edges.
• IPS full view angle: 178 ° no offset, no color deviation, multiple people watching on the same screen without color deviation.
• 700 nits high brightness: still clear and readable under outdoor sunlight, perfectly matched with motorcycle navigation and handheld outdoor terminals.
Ultra thin and narrow, with a more flexible structure
• The appearance is 70.5 × 127.3 mm, with a thickness of only 1.68 mm at the thinnest point, providing greater margin for weight reduction and thinning of the entire machine.
• Narrow border design, higher screen to body ratio, easy to embed into handheld devices or rearview mirror cavities.
• 18 LED backlight beads, with a lifespan of 30000 hours and five years without dimming.

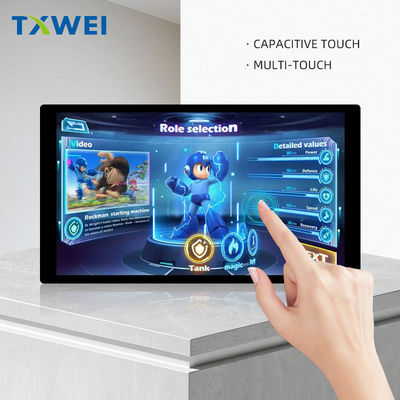

Touch display integrated
• Incell touch, with fewer glass layers and fingers closer to the pixels; Wet hands and oil screens can also be operated accurately.
• Supports 10 touch controls, with a maximum reporting rate of 100 Hz, and no delay in finger sliding/zooming
• I²C touch interface, communication can be done with 2 wires, and the wiring is clean without fighting.
• 40 PIN standard FPC, 0.5mm spacing, stable insertion in one go.
• MIPI 4 Lane high-speed interface, 4x bandwidth redundancy, high frame rate gaming without losing control.
Vehicle grade "anti manufacturing" certification
• Working temperature -20 ℃~+60 ℃, storage -30 ℃~+70 ℃; 96 hours of double 85, passing through with 10 cycles of cold and hot shock.
• Lead free process, compliant with RoHS&REACH, worry free export to North America and the European Union.
• Anti static, anti salt spray, and anti fall
Typical landing scenario of TXW550081N0-SY 5.5 "screen
handheld game console
1080 × 1920+700 nits high brightness, also clear for outdoor connectivity; IPS 178 ° full field of view, multi person viewing without color distortion; Leave enough space for the fan and battery with a thickness of 1.68mm.
Intelligent navigation for motorcycles/electric vehicles
700 nits readable under scorching sun; -20~60 ℃ vehicle grade temperature; Vertical screen 1080 × 1920 displays map, vehicle speed, and incoming calls simultaneously on one screen; Incell touch gloves can be operated.
Car streaming rearview mirror
Narrow border 70.5 × 127.3 mm, can be directly embedded into the original rearview mirror column; MIPI 4 Lane high bandwidth running 60 fps reverse image; IPS perspective allows rear passengers to see clearly.
Outdoor three proof tablet/industrial PDA
700 nits high brightness+IPS full view, warehouse high ceiling lights or direct sunlight on construction sites are still visible; A cover plate of 0.7 mm or more can be reserved for the structure to meet the requirement of a 1-meter drop.
Portable medical monitor
1080P resolution makes ECG curves and blood oxygen waveform details clear; -Stable operation of ambulance at 20 ℃ and disinfection cabinet at 60 ℃; Incell touch supports medical glove operation.
Smart helmet/AR glasses screen projection
Small size 5.5 "for near eye optical engine; high brightness to compensate for optical losses; 1.68mm thickness to reduce the weight of the helmet front end.
ビデオ
ビデオ
ビデオ
|
|
