| MOQ: | 1 |
| 価格: | 交渉可能 |
| 配達期間: | 7~16日 |
| 支払方法: | L/C、D/A、D/P、T/T |
| 供給能力: | 10000pcs |

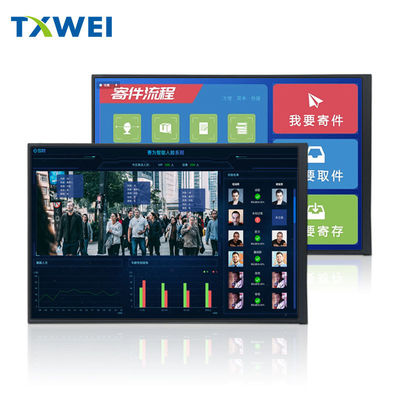

TXW100035B8 10.1-inch high brightness industrial grade LCD module - a "sun visible expert" designed for harsh scenes
[Product Positioning]
TXW100035B8 is a 10.1-inch high brightness LCD display module specially designed for industrial scenarios such as security, tower cranes, outdoor cabinets, medical and drone countermeasures. With a high brightness of 500 nits, IPS full view angle, and wide temperature design, it still provides a clear, stable, and durable visual experience in harsh environments such as strong direct sunlight, low-temperature start-up, and continuous vibration.
LCM General specification
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
800*3RGB(H)X1280(V) |
Dots |
|
Pixel arrangement |
RGB Vertical Stripe |
-- |
|
Pixel Pitch (W*H) |
0.1692(H)×0.1692(V) |
mm |
|
Active area |
135.36(H)x216.58(V) |
mm |
|
Viewing direction |
ALL O'CLOCK |
-- |
|
TFT Driver IC |
JD9365DA-H3 |
-- |
|
TFT interface |
4lane MIPI interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
143.00(W) ×228.60(H) ×2.70(T) |
mm |
|
Touch structure |
-- |
-- |
|
Touch Driver IC |
-- |
-- |
|
Touch Interface |
-- |
-- |
[Core Highlights]
Readable under sunlight: 500 nits high brightness+IPS full view angle, clear even in strong outdoor light.
Wide temperature operation: -20 ℃~+70 ℃ working temperature, -30 ℃~+80 ℃ storage temperature, fearless of extreme heat and cold.
Industrial grade reliability: MIPI 4 Lane 40 PIN interface+JD9365DA professional display chip, high-speed and stable signal.
Compact and easy to install: 135.36 × 216.58 mm display area, 143 × 228.6 × 2.8 mm external dimensions, easy to embed into various chassis and control panels.
Multi scenario ready to use: one screen universal for security monitoring, tower cranes, express lockers, food lockers, medical equipment, drone countermeasures, etc.
[List of Technical Specifications]
• Size: 10.1 inches
Resolution: 800 × 1280 (portrait)
• Display technology: IPS, no color distortion at all viewing angles
• Brightness: 500 cd/m ²
• Interface: MIPI DSI 4 Lane, 40 PIN plug-in FPC
Driver chip: JD9365DA, supporting mainstream control platforms
• Structural dimensions:
- Display area: 135.36 × 216.58 mm
- Dimensions: 143 × 228.6 × 2.8 mm
• Environmental indicators:
- Working temperature: -20 ℃~+70 ℃
- Storage temperature: -30 ℃~+80 ℃
Typical application scenarios
Security display: outdoor monitoring, access control visual intercom, clear day and night.
Tower crane display panel: high brightness anti vibration, real-time status is clear at a glance.
Logistics/express lockers, pick-up lockers: Scan codes under sunlight and play advertisements without reflection.
Medical portable devices: wide temperature start, meeting the needs of mobile medical outdoor patrols.
Drone countermeasure system: In strong light interference environments, it can transmit real-time images without losing frames.
【 Reason for selection 】
In outdoor or industrial settings, ordinary consumer screens often have insufficient brightness, narrow temperature range, and loose interfaces. TXW100035B8 adopts an industrial grade design concept, integrating high brightness, full viewing angle, wide temperature range, and reliable interfaces. With one selection, it can solve the three major pain points of sunlight readability, low-temperature start-up, and long-term stability, significantly shortening the customer's overall development cycle and maintenance costs.
If you need samples, development board information, or customized wiring, please feel free to contact our technical support team at any time.
